Product Feature
Pulmonary Function Test Machine
AI-Based Oscillometry Device
India's First FOT Device

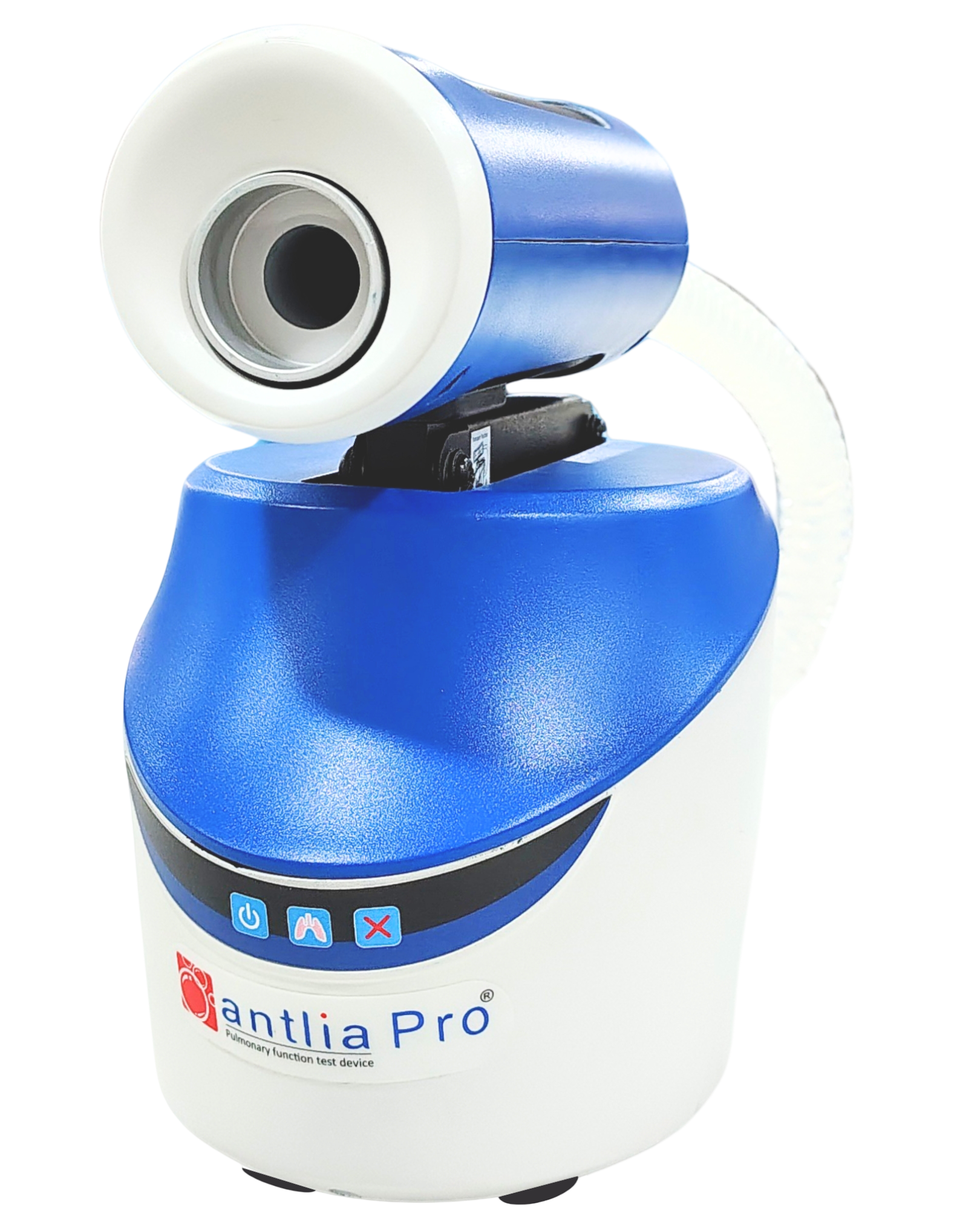

Antlia Pro®, a pulmonary function test machine featuring Forced Oscillation Technology (FOT) to provide in-depth information about respiratory mechanics – all while your patient breathes normally and easily!
Antlia Pro® enables complete PC–patient communication through a Bacterial–Viral Filter, ensuring a safe and secure test. It eliminates the need for forceful breathing manoeuvres, making the procedure effortless and non-intimidating for patients.
Patient-Friendly Testing
Antlia Pro® measures lung function during natural breathing, making it suitable for all ages.
Detects Small Airway Disease
Antlia Pro® uses advanced oscillometry to detect early small airway changes.

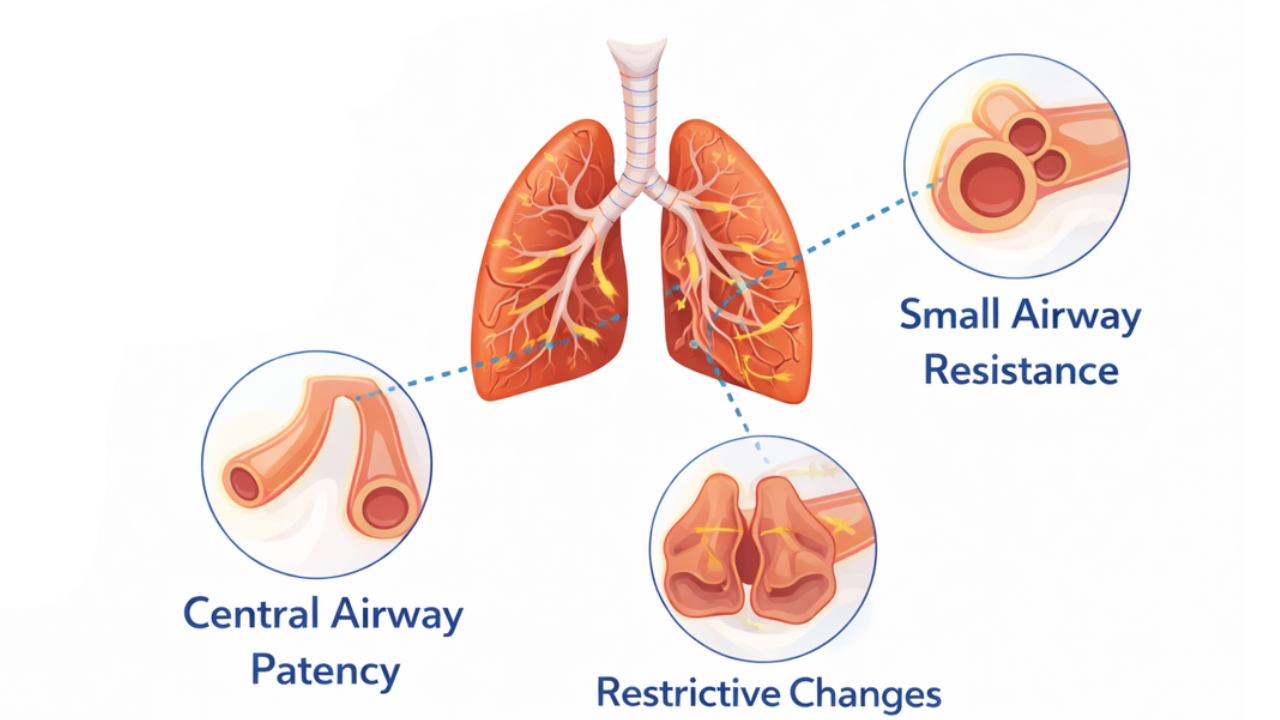

Comprehensive Lung Assessment
Complete lung health evaluation in one test, assessing central airways, small airway resistance, and overall lung mechanics.
Faster and More Efficient Testing
Effort-free test delivers accurate results faster than conventional lung tests, helping clinics assess more patients in less time.
Portable and Flexible Design
Compact and versatile, Antlia Pro enables reliable lung testing in clinics, hospitals, or at the bedside for in-patients.
Ready for Clinical Practice and Research
5–37 Hz modes offer accurate, patient-friendly airway assessment for asthma, COPD, post-TB, and other respiratory diseases.
Antlia Pro's Smart Software Solution
A clean, intuitive interface that helps clinicians capture, review, and interpret respiratory data without any complexity. It streamlines workflow, delivers clear insights, and supports confident decision-making in every test.
Testing Window

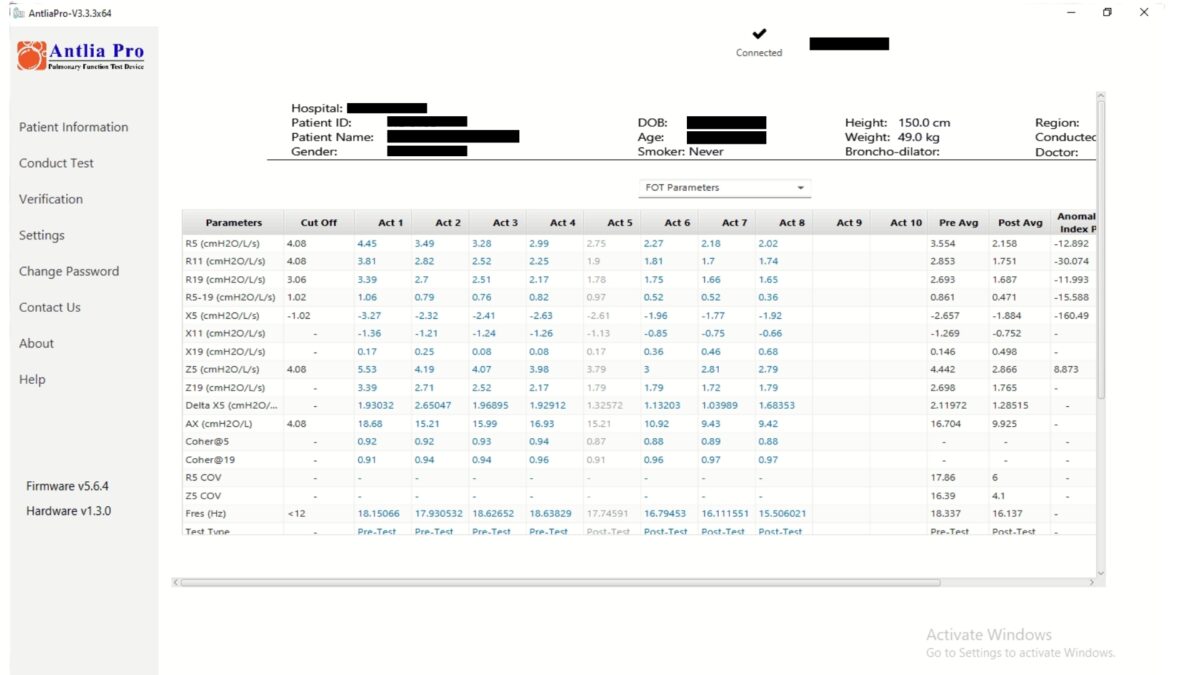

Parameters Table (Pre vs Post)
Compares lung mechanics before and after bronchodilator use.
Resistance: R5 total airways, R19 central airways, R5–R19 small airways.
Reactance: X5 lung elasticity, AX overall stiffness, Fres rises with obstruction.
Post-treatment improvement indicates better compliance and small airway function.
AI (Anomaly Index): Shows deviation from normal values for quick interpretation.

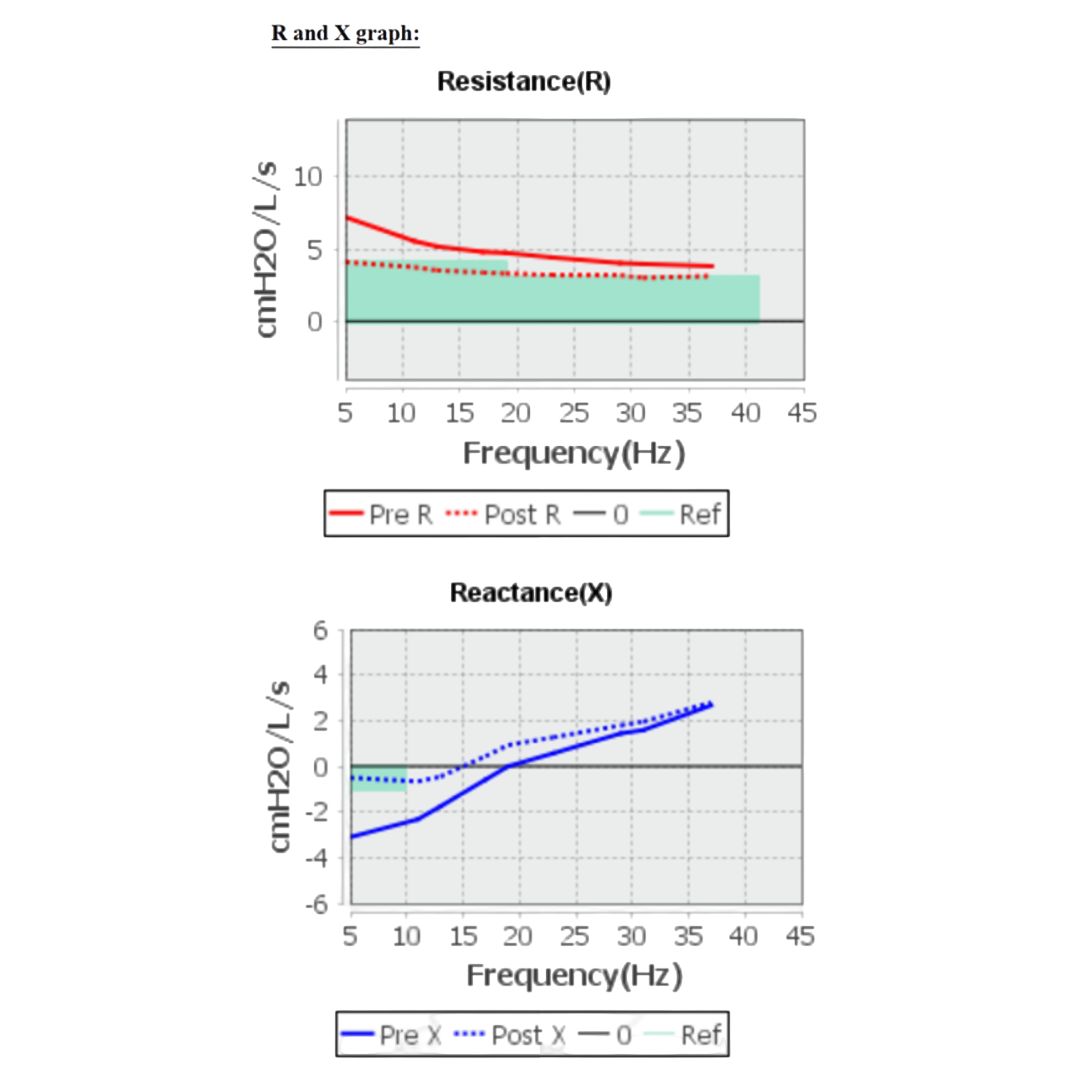

Key Points of the R and X Graph
High low-frequency resistance indicates small airway obstruction.
Reduced resistance after treatment shows improved airway opening.
Negative low-frequency reactance reflects reduced lung elasticity.
Reactance shifting toward zero post-test indicates improved lung mechanics.

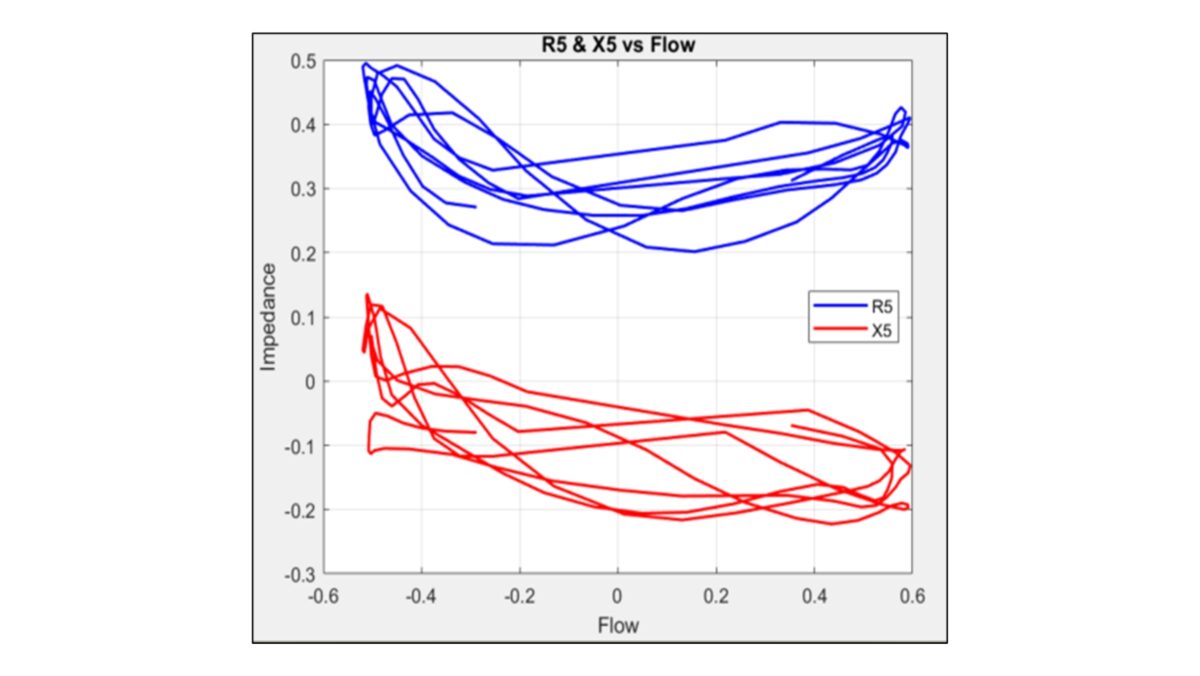

R5 & X5 vs Flow (Intra-Breath Analysis)
- Shows airway behaviour during normal breathing.
- R5 changes track resistance across the breath cycle.
- More negative expiratory X5 indicates small airway closure.
- Detects early airway instability missed by spirometry.

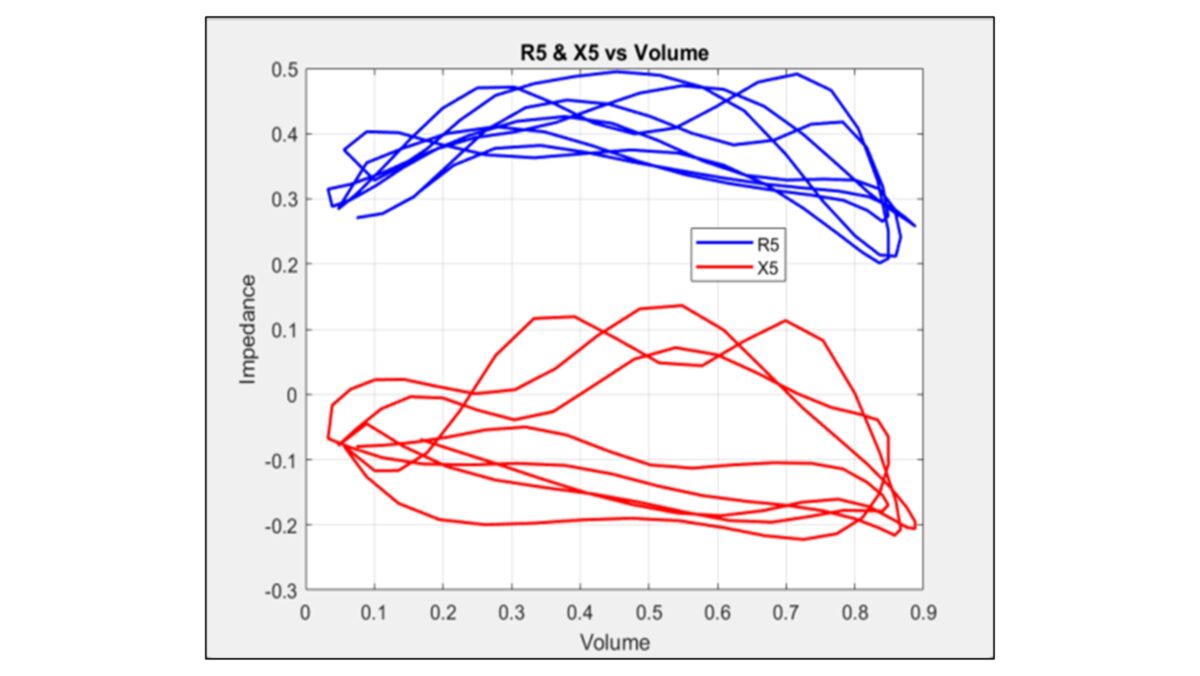

R5 & X5 vs Volume (Intra-Breath Analysis)
Shows resistance and elasticity changes during tidal breathing.
R5 variation reflects volume-dependent airway narrowing.
More negative X5 indicates reduced compliance and small airway closure.
Helps detect early small airway disease.
How Does the FOT Work?
Forced Oscillation Technology
Antlia Pro® harnesses the forced oscillation technology (FOT), a clinically proven alternative to standard spirometry.
Rather than requiring forceful breathing manoeuvres, FOT evaluates a patient’s respiratory system by measuring impedance — its two key components being resistance (Rrs) and reactance (Xrs).
Using gentle pressure oscillations at multiple frequencies (typically between 5 and 20 Hz), Antlia Pro captures these parameters while the patient breathes normally, offering a sensitive, non-invasive assessment of lung function.
Small pressure oscillations are applied during normal breathing.
Lung response reveals airway and tissue mechanics.
Resistance indicates airflow obstruction.
Reactance reflects lung elasticity and peripheral airways.
Frequency analysis detects early airway changes missed by spirometry.
Testimonials
FAQ's
How does FOT differ from spirometry?
FOT is performed during normal breathing and does not require forceful effort, unlike spirometry.
Who can benefit from FOT testing?
FOT is helpful for children, older adults, and patients who struggle with forced breathing manoeuvres.
Is FOT useful for early disease detection?
Yes. FOT is sensitive to small airway dysfunction and changes in lung mechanics, allowing detection of early respiratory abnormalities even when spirometry results are normal.
How long does a typical FOT test take?
FOT requires only a few relaxed breaths and is shorter and more comfortable than spirometry in many clinical settings. It requires 24 seconds to perform one manoeuvre.
Is FOT safe for repeated testing?
Yes. FOT is non-invasive, radiation-free, and effort-independent, making it safe for repeated and follow-up assessments.
For what parameters does FOT measure?
FOT measures respiratory impedance, which includes:
i) Resistance (R) – reflects airway obstruction (e.g., R5, R19/R20)
ii) Reactance (X) – reflects lung compliance and elastic properties (e.g., X5)
iii) R5–R19 (or R5–R20) – indicates small airway dysfunction

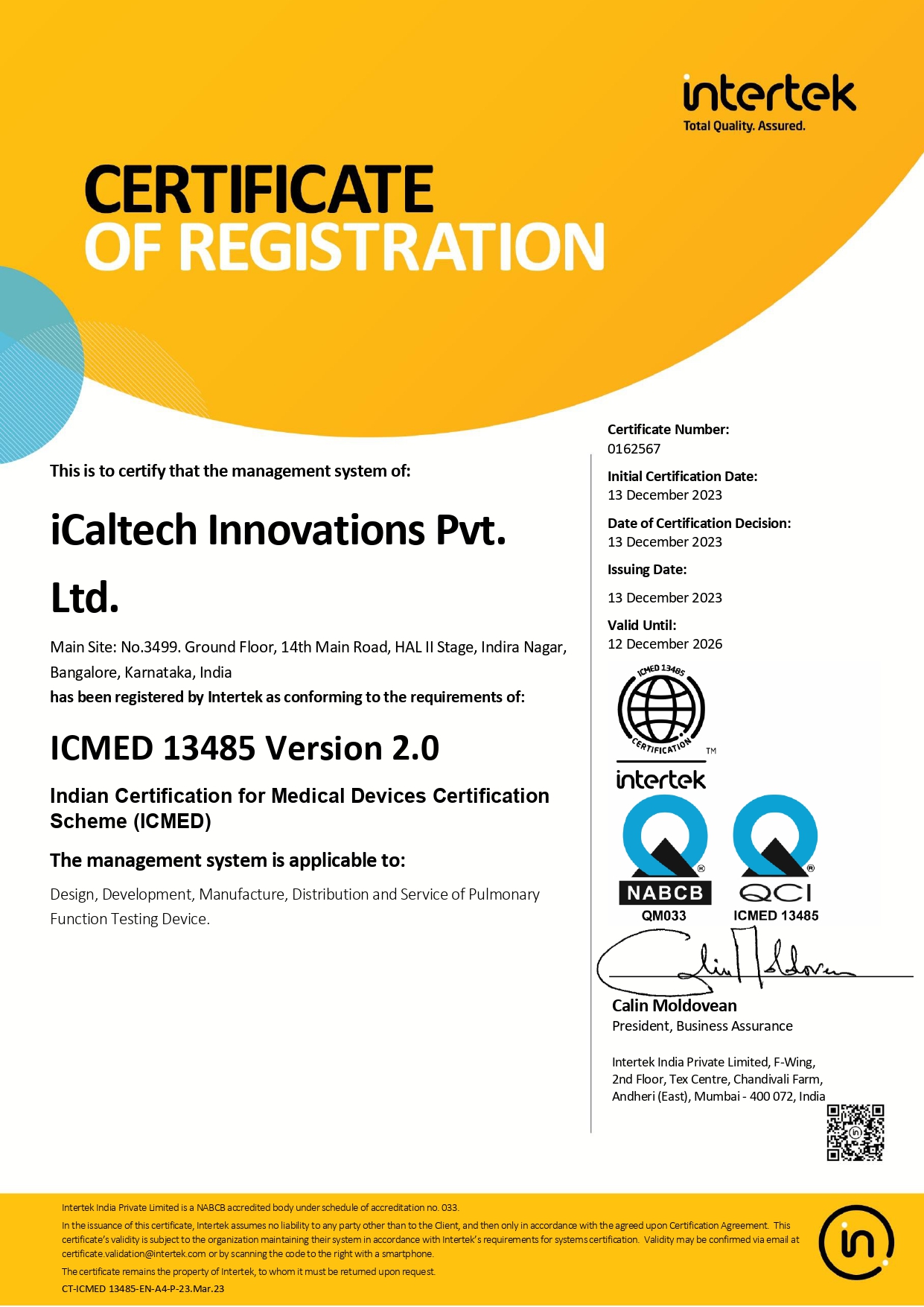

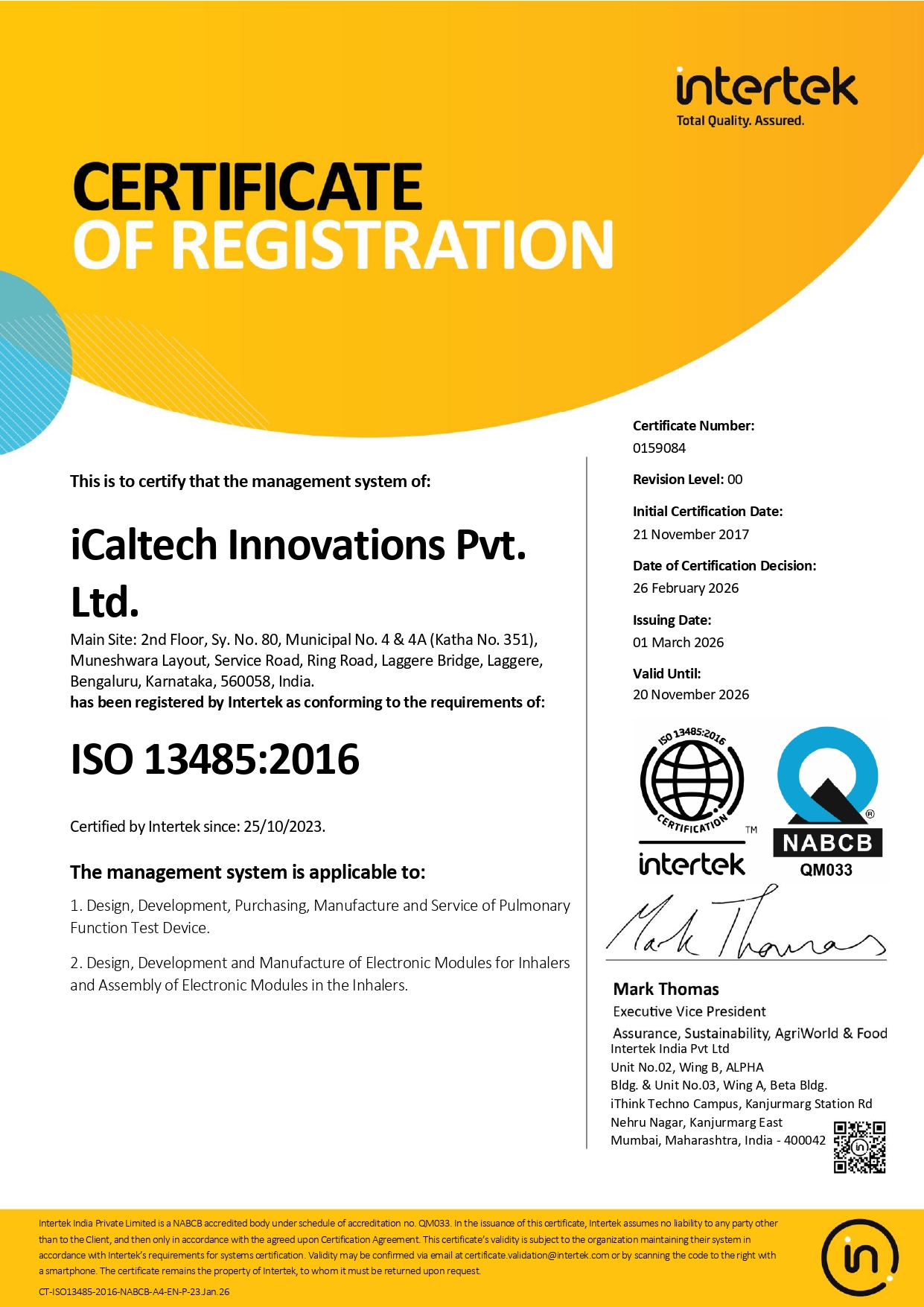

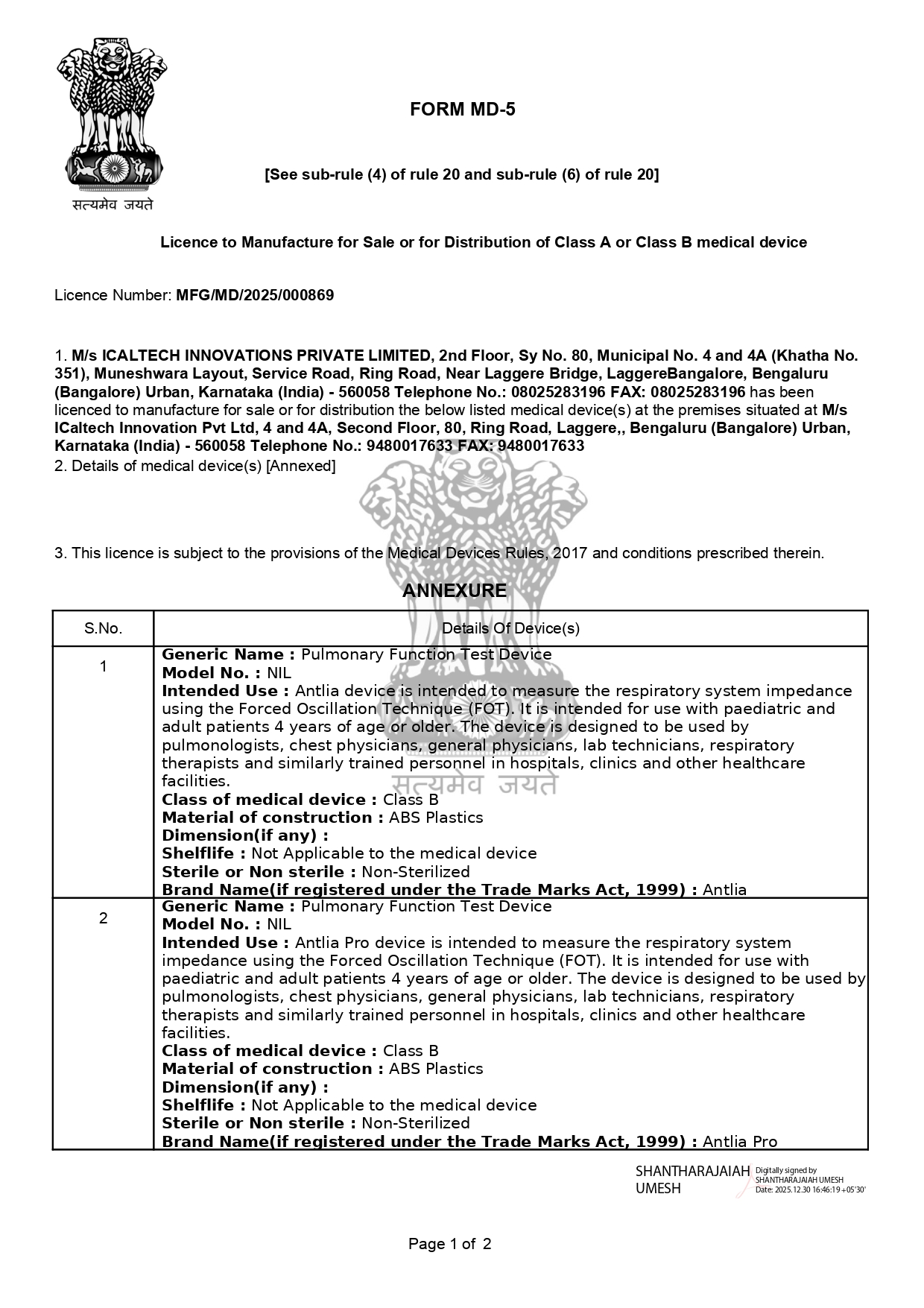

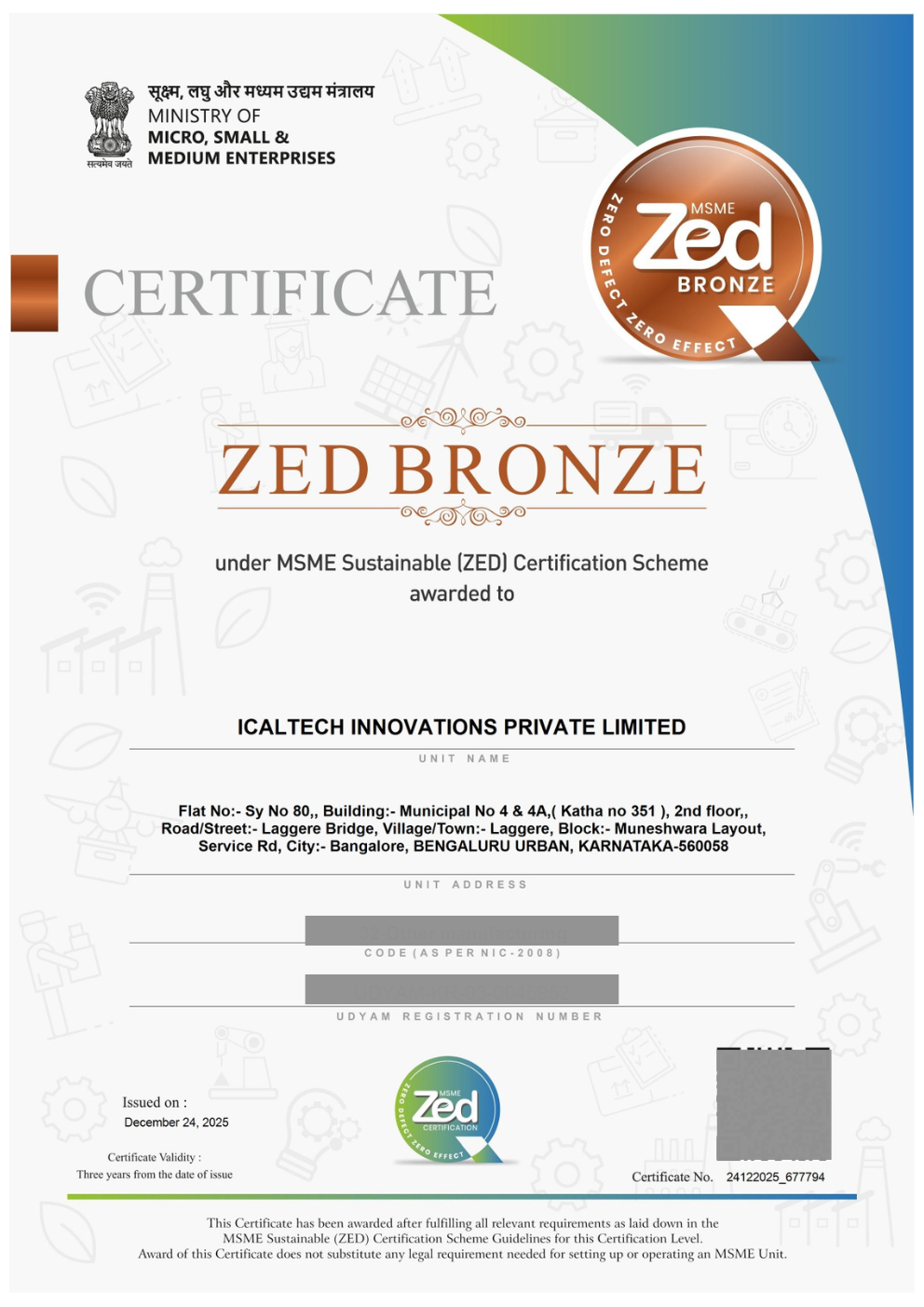

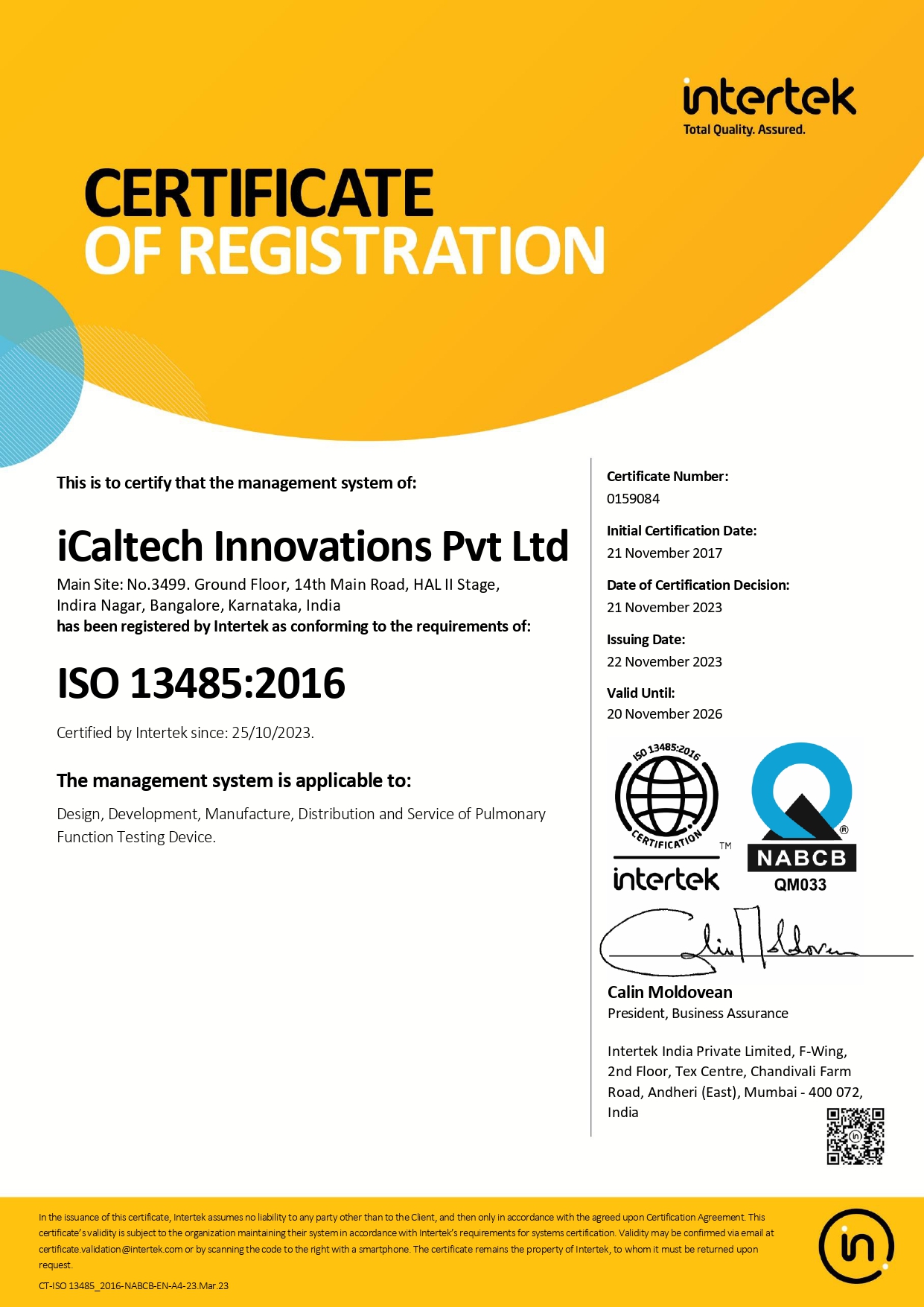

Regulatory Certificates

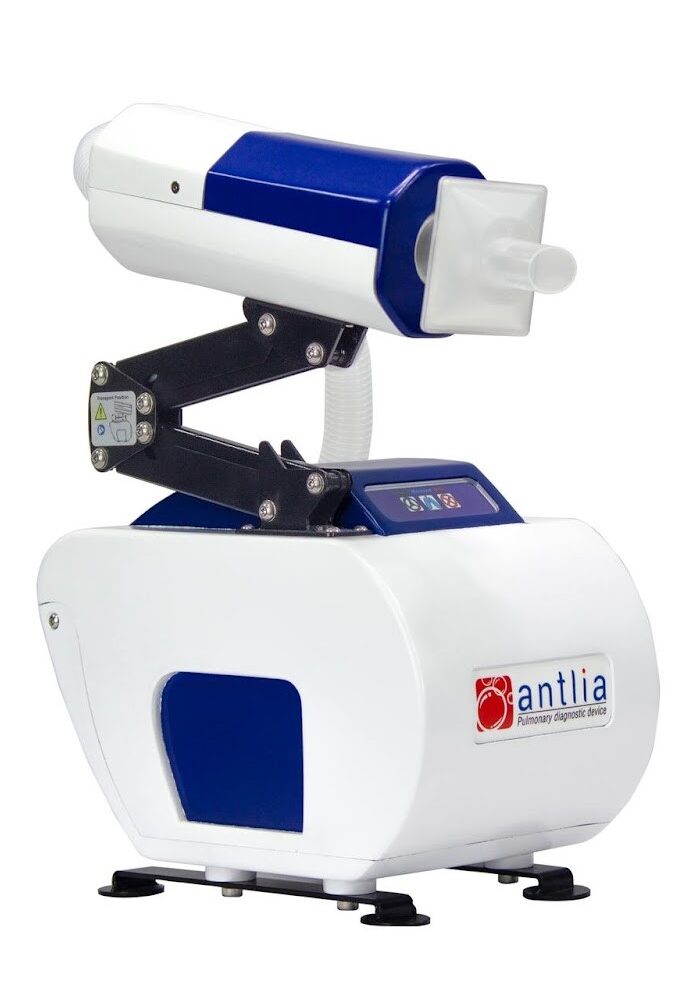

-Antlia FOT Device
Antlia is a Forced Oscillation Technology (FOT)-based system for the clinical evaluation of the respiratory system under tidal breathing conditions. Antlia is an advanced lung function testing PC-operated, non-invasive device for the evaluation of pulmonary diseases related to central and peripheral airways. Antlia is designed to be the perfect aide to pulmonologists with high accuracy, versatility and efficiency. Antlia is ideal for all patients who must undergo pulmonary function tests, especially the weak, elderly and young. An Antlia-based lung test is simple and requires only passive co-operation with no forced expiratory manoeuvres.
-Accessories

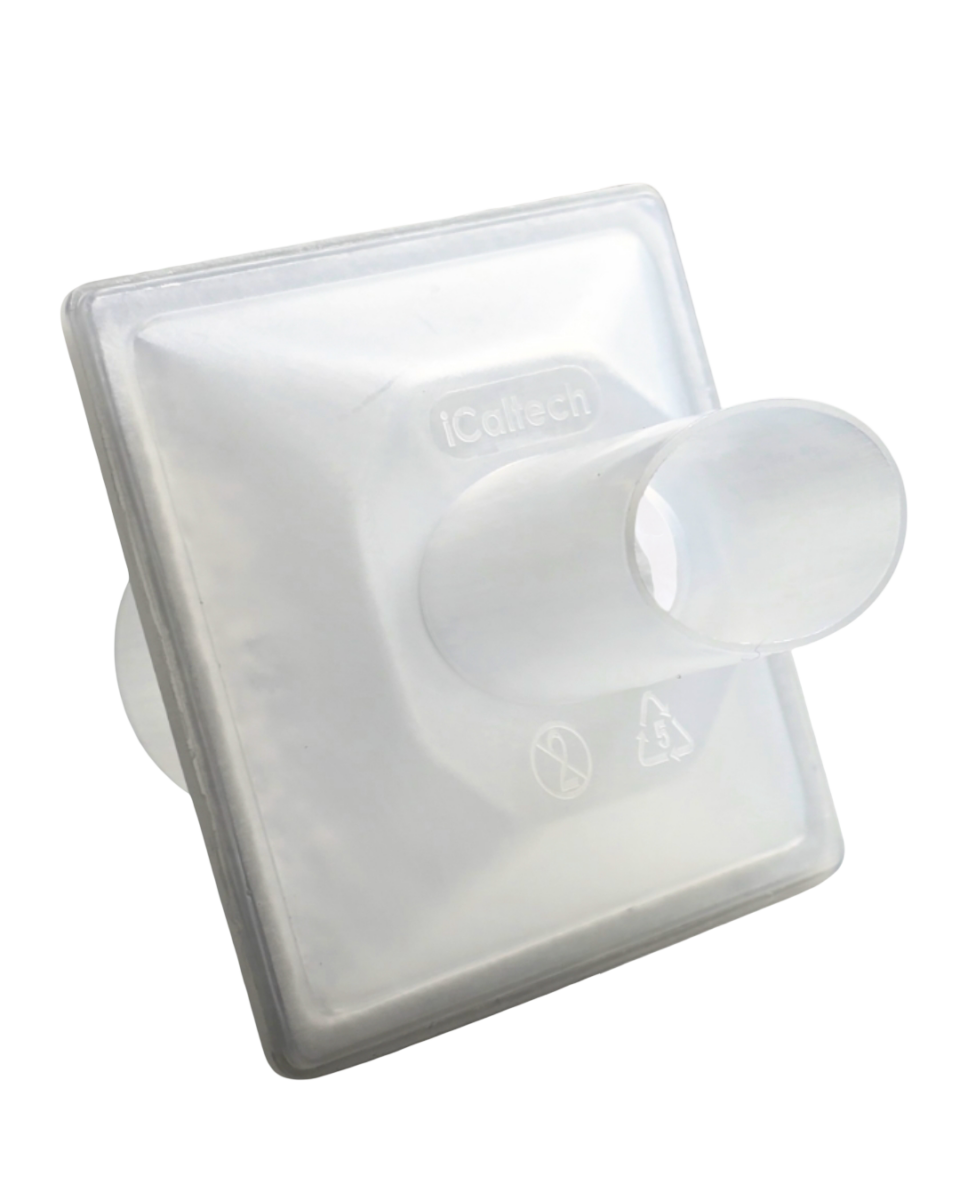

BVF FILTER
Technical Specifications:
Model: ANTL 101
Material: Polypropylene
Dimension: 68 mm * 72 mm
Weight: 11 gm
Dead Space: 55ml
Resistance: 0.04 kPa/L/s
Filtration Efficiency: Greater than 99.99%
